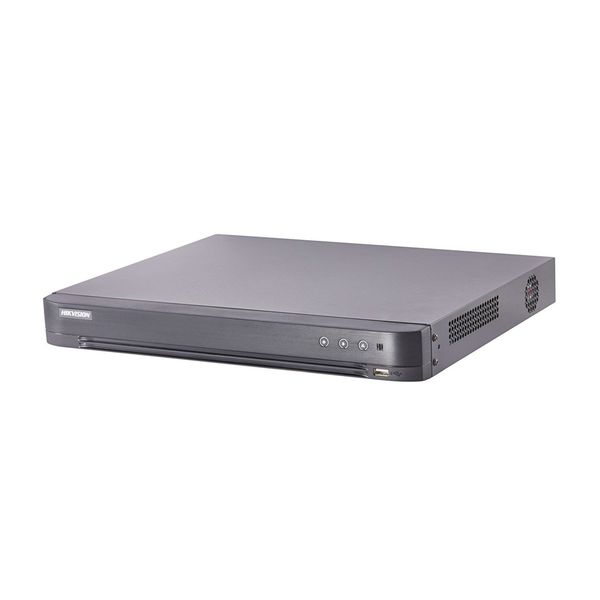

DVR HIKVISION TURBO 4.0 32CH H265+ 4MP LITE/3MP 5X1 DS-7232HQHI-K2

PROTEÇÃO DE PERÍMETRO
Line Crossing Detection/Intrusion Detection: 2-ch Enhanced VCA mode on: 4-ch

GRAVAÇÃO

Compressão De Vídeo: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Resolução De Codificação: When 1080p lite mode is not enabled: 4MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p lite mode is enabled: 4 MP lite/3 MP/1080p lite/720plite/VGA/WD1/4CIF/CIF
Taxa De Quadros: Main stream: When 1080p lite mode not is enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Taxa De Bits De Vídeo: 32 Kbps to 6 Mbps
Transmissão Dupla: Support
Tipo De Transmissão: Video, Video & Audio
Compressão De Áudio: G.711u
Taxa De Bits De Áudio: 64 Kbps

VÍDEO E ÁUDIO

Entrada De Vídeo IP: 2-ch (up to 34-ch), Enhanced IP mode on: 8-ch (up to 40-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Entrada De Vídeo Analógica: 32-ch BNC interface (1.0 Vp-p, 75 O), supporting coaxitron connection
Incoming Bandwidth: Enhanced IP mode on: 160 Mbps
HDTVI Input: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1/2/3/4.
AHD Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
CVBS Input: PAL/NTSC
HDMI Output: 1-ch, 4K (3840 × 2160) /30Hz, 2K (2560 × 1440) /60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 × 576, NTSC: 704 × 480
Entrada De Áudio: 1-ch, RCA (2.0 Vp-p, 1 KO)
Saída De Áudio: 1-ch, RCA (Linear, 1 KO)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KO) (using the first audio input)
Synchronous Playback: 16-ch

REDE

Conexão Remota: 128
Total Bandwidth: 128 Mbps
Protocolo De Rede: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Interface De Rede: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

AUXILIAR DA INTERFACE

Interface Serial: RS-485 (half-duplex)
SATA: 2 SATA interfaces
Capacidade: Up to 10 TB capacity for each disk
Entrada/Saída De Alarme: N/A
Interface USB: Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0

GERAL
Fonte De Alimentação: 12 VDC, 4.5 A
Consumo: = 65 W (without HDD)
Temperatura De Funcionamento: -10 °C to +55 °C (+14 °F to +131 °F)
Umidade De Funcionamento: 10% to 90%
Dimensões (L×P×A): 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) = 2 kg (4.4 lb)
